HOME MADE DOUBLE SIDED PCB

If you are interested to make any electronic circuit the PCB is required and if the circuit is a bit complex the single sided PCB doesn't works so it require the Double Sided PCB. I have made the Double sided PCB at Home the steps are very simple and easy to do. steps are

1. Get the printout of the PCB mirror image on the "Photo Glossy" paper by a Laser Printer in Best Quality since we are going to transfer the toner printout must to in the Best quality and the paper is to be Photo Glossy. Photo Glossy Paper easily allow the Toner to be transfer on the PCB coper clad.

2. Clean the copper clad properly using fine emery paper.

3. Fold the Printout paper in a precise way so the drill hole matches exactly for both top and bottom layer of the PCB. then put the coper clad with-it. Press with the hot Iron for about 10 Minutes for both sides.

4, Peel off the Glossy Paper from the PCB and we can see the toner transfer on the copper clad.

5. Now take the concentrated Ferric Chloride Solution  and put this copper clad within it for about 20 minutes. stair the solution if you feel so. and observer in between. if you find the all extra copper is removed from the plat take it out from the solution.

6. wash the clad with the water and when it dry remove the toner (Black Ink) from the surface of the clad with a help of any paint thinner.

7. now drill the hole for the component.

8. it is double sided PCB so through hole is required. to do that i have used a very thin wire passed through the hole and soldered it both the side of PCB. it is tedious job but it is the only way i find to do the through hole at home.

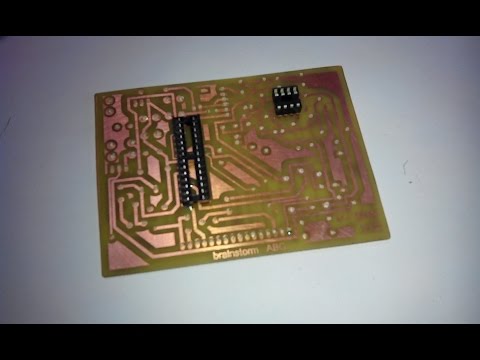

9. Now your PCB is ready for populating the components.
